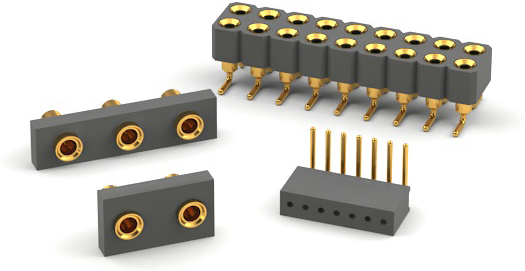

Screw Machine Sockets
Adam Tech’s line of Screw Machine Sockets feature solid precision turned sleeves with a closed bottom design to eliminate flux intrusion and solder wicking during soldering. The stamped spring copper insert provides excellent connection and allows for repeated insertion and withdrawal. These sockets are offered in single or dual row body styles. Other options include pitch, positions, and plating.
All products in this category are RoHS & REACH Compliant
| Product Photo | Part Number | Mating Parts | Centerline | Body Style | Positions | Plating | Datasheet / 3D Model | Ordering |
|---|---|---|---|---|---|---|---|---|
| 2SMC-1-XX-1-GT | .079" [2.00mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| 2SMC-2A-XX-1-GT-HT | .079" [2.00mm] | Dual Row, Straight | 2 to 80 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| 5SMC1-03-G | .200" [5.08mm] | Single Row, Straight | 1 to 40 | Gold Overall | View | Shop | ||
| 5SMC2-02-G | .200" [5.08mm] | Single Row, Straight | 1 to 40 | Gold Overall | View | Shop | ||
| HSMC-1-XX-1-GT | .050" [1.27mm] | Single Row, Straight | 1 to 50 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
 |
ICM-3XX-1-GT-HT | .100" [2.54mm] | Dual Row, Straight | 6 to 28 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | |
 |
ICM-6XX-1-GT-HT | .100" [2.54mm] | Dual Row, Straight | 6 to 28 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | |
| SMC-1-03-1-GT-X02 | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1-05-1-GT-232 | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1-05-1-GT-520 | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
 |
SMC-1-XX-1-GT | View | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop |
| SMC-1-XX-1-GT-567 | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1-XX-1-GT-583-SQT-HT | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1-XX-1-GT-HT | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1-XX-1-GT-SMT-X | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1-XX-1-TT | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Tin Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1-XX-SMD-42-GT | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1A-XX-1-GT-HT | .100" [2.54mm] | Single Row, Straight | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-1R-XX-1-GT-SMT | .100" [2.54mm] | Single Row, Right Angle | 1 to 40 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-2-XX-1-GT | View | .100" [2.54mm] | Dual Row, Straight | 2 to 80 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | |
| SMC-2A-XX-1-GT-HT | .100" [2.54mm] | Dual Row, Straight | 2 to 80 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop | ||
| SMC-2A-XX-1-GT-SMT-PP-TR | .100" [2.54mm] | Dual Row, Straight | 2 to 80 | Gold Plated Inner Contact, Tin Plated Outer Sleeve | View | Shop |
| Part Number | 2SMC-1-XX-1-GT |
|---|---|
| Centerline | .079" [2.00mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | 2SMC-2A-XX-1-GT-HT |
| Centerline | .079" [2.00mm] |
| Body Style | Dual Row, Straight |
| Positions | 2 to 80 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | 5SMC1-03-G |
| Centerline | .200" [5.08mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Overall |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | 5SMC2-02-G |
| Centerline | .200" [5.08mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Overall |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | HSMC-1-XX-1-GT |
| Centerline | .050" [1.27mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 50 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | ICM-3XX-1-GT-HT |
| Centerline | .100" [2.54mm] |
| Body Style | Dual Row, Straight |
| Positions | 6 to 28 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | ICM-6XX-1-GT-HT |
| Centerline | .100" [2.54mm] |
| Body Style | Dual Row, Straight |
| Positions | 6 to 28 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-03-1-GT-X02 |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-05-1-GT-232 |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-05-1-GT-520 |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | SMC-1-XX-1-GT |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Mating Parts | |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-XX-1-GT-567 |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-XX-1-GT-583-SQT-HT |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-XX-1-GT-HT |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-XX-1-GT-SMT-X |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-XX-1-TT |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Tin Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1-XX-SMD-42-GT |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1A-XX-1-GT-HT |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Straight |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-1R-XX-1-GT-SMT |
| Centerline | .100" [2.54mm] |
| Body Style | Single Row, Right Angle |
| Positions | 1 to 40 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-2-XX-1-GT |
| Centerline | .100" [2.54mm] |
| Body Style | Dual Row, Straight |
| Positions | 2 to 80 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Mating Parts | |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-2A-XX-1-GT-HT |
| Centerline | .100" [2.54mm] |
| Body Style | Dual Row, Straight |
| Positions | 2 to 80 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | SMC-2A-XX-1-GT-SMT-PP-TR |
| Centerline | .100" [2.54mm] |
| Body Style | Dual Row, Straight |
| Positions | 2 to 80 |
| Plating | Gold Plated Inner Contact, Tin Plated Outer Sleeve |
| Datasheet / 3D Model | |
| Shop | |
