LIF Flex Circuit Connectors (Low Insertion Force)

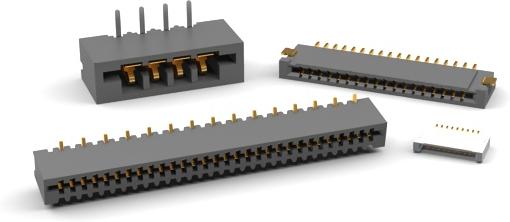

Adam Tech PCB Series Flexible Printed Circuit (FPC) and Flexible Flat Cable (FFC) connectors are a LIF (low insertion force) design that provides a low cost, fast, easy and reliable connection of flexible printed circuits to a PCB. Adam Tech’s special contact design preserves conductor integrity while producing a stable, high pressure connection. This series includes single and dual row versions in 2.54mm, 1.25mm, 1.00mm & 0.50mm centerlines with vertical or horizontal orientations.
All products in this category are RoHS & REACH Compliant
| Product Photo | Part Number | Mating Parts | Centerline | Entry Angle | Plating | Datasheet / 3D Model | Ordering |
|---|---|---|---|---|---|---|---|
| PCB-A-17-SA | .100" [2.54mm] | Side Entry | Tin | View | Shop | ||
| PCB-A1-XX-T | .100" [2.54mm] | Top Entry | Tin | View | Shop | ||
| PCB-A2-XX-T | .100" [2.54mm] | Top Entry | Tin | View | Shop | ||
 |
PCB-B-XX-SA-25 | .049" [1.25mm] | Side Entry | Tin | View | Shop | |
 |
PCB-B-XX-T-25 | .049" [1.25mm] | Top Entry | Tin | View | Shop | |
| PCB-B2-XX-T-25 | .049" [1.25mm] | Top Entry | Tin | View | Shop | ||
| PCB-B3-XX-SA-25 | .049" [1.25mm] | Side Entry | Tin | View | Shop | ||
| PCB-C-18-SA-SMT | .039" [1.00mm] | Side Entry | Tin | View | Shop | ||
| PCB-C-4A-XX-T-SMT-B-KT-TR | .039" [1.00mm] | Top Entry | Tin | View | Shop | ||
 |
PCB-C-XX-SA-20 | .039" [1.00mm] | Side Entry | Tin | View | Shop | |
| PCB-C-XX-SA-SMT | .039" [1.00mm] | Side Entry | Tin | View | Shop | ||
| PCB-C-XX-SA-SMT-TR | .039" [1.00mm] | Side Entry | Tin | View | Shop | ||
 |
PCB-C-XX-T-20 | .039" [1.00mm] | Top Entry | Tin | View | Shop | |
 |
PCB-C-XX-T-SMT | .039" [1.00mm] | Top Entry | Tin | View | Shop | |
| PCB-C-XX-T-SMT-KT-TR | .039" [1.00mm] | Top Entry | Tin | View | Shop | ||
 |
PCB-C-XX-T-SMT-SG | .039" [1.00mm] | Top Entry | Tin | View | Shop | |
| PCB-C2-XX-T-SMT | .039" [1.00mm] | Top Entry | Tin | View | Shop | ||
| PCB-C3-XX-SA-SMT | .039" [1.00mm] | Side Entry | Tin | View | Shop | ||
| PCB-C5-XX-SA-SMT | .039" [1.00mm] | Side Entry | Tin | View | Shop | ||
| PCB-C5-XX-SA-SMT-TR | .039" [1.00mm] | Side Entry | Tin | View | Shop | ||
| PCB-C5-XX-T-20 | .039" [1.00mm] | Top Entry | Tin | View | Shop | ||
| PCB-C5-XX-T-SMT-KT-TR | .039" [1.00mm] | Top Entry | Tin | View | Shop | ||
| PCB-C5-XX-T-SMT-R-KT-TR | .039" [1.00mm] | Top Entry | Tin | View | Shop | ||
| PCB-D3-XX-SA-SMT-MT-TR | .039" [1.00mm] | Side Entry | Matte Tin | View | Shop |
