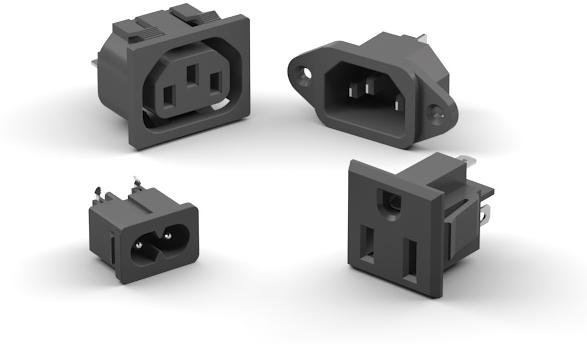

AC Inlets & Outlets
Adam Tech IEC & Mini IEC series AC Inlets and Outlets are primary power receptacles designed, manufactured, tested and approved to UL, CSA, VDE and other applicable international specications including IEC-60320 and CEE-22. Adam Tech offers a wide variety of body styles, shapes and orientations to accommodate most class I & II applications with two or three blade contacts in both IEC and Mini IEC configurations. Mounting choices include screw holes and snap-in versions and four termination styles. Options of ganged ports or receptacle with integral fuse holder are also available.
All products in this category are RoHS & REACH Compliant
| Product Photo | Part Number | Mating Parts | Type | Style | Mounting Type | Termination | Panel Thickness | Number of Ports | Fused | Switched | Datasheet / 3D Model | Ordering |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B01-0102076AC03 | Power Cord | Cord: NEMA to IEC 320-C13 | Non-Fused | View | Shop | |||||||
 |
IEC-A-1 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Quick Connect .187" [4.8mm] | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-A-2 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Quick Connect .250" [6.35mm] | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-A-3 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Solder .157" [4.0mm] | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-A-4 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Right Angle PCB Mount | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-B-1 | Female Outlet | IEC 320-C13 | Screw-On Panel Mount | Quick Connect .187" [4.8mm] | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-B-2 | Female Outlet | IEC 320-C13 | Screw-On Panel Mount | Quick Connect .250" [6.35mm] | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-C-1 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.031"~0.079" [0.80mm~2.00mm] | Single Port | Non-Fused | No | View | Shop | |
 |
IEC-C-1-080 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.031" [0.80mm] | Single Port | Non-Fused | No | View | Shop | |
 |
IEC-C-1-150 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.059" [1.50mm] | Single Port | Non-Fused | No | View | Shop | |
 |
IEC-C-1-400 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.157" [4.00mm] | Single Port | Non-Fused | No | View | Shop | |
| IEC-C-2 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .250" [6.35mm] | 0.031"~0.079" [0.80mm~2.00mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-2-080 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .250" [6.35mm] | 0.031" [0.80mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-2-150 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .250" [6.35mm] | 0.059" [1.50mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-2-400 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .250" [6.35mm] | 0.157" [4.00mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-3 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .157" [4.0mm] | 0.031"~0.079" [0.80mm~2.00mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-3-080 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .157" [4.0mm] | 0.031" [0.80mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-3-150 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .157" [4.0mm] | 0.059" [1.50mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-3-400 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .157" [4.0mm] | 0.157" [4.00mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-5 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .098" [2.49mm] | 0.031"~0.079" [0.80mm~2.00mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-5-080 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .098" [2.49mm] | 0.031" [0.80mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-5-150 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .098" [2.49mm] | 0.059" [1.50mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-5-400 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .098" [2.49mm] | 0.157" [4.00mm] | Single Port | Non-Fused | No | View | Shop | ||
| IEC-C-X-XXX | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Multiple Options | 0.031"~0.157" [0.80mm~4.00mm] | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-D-1 | Female Outlet | IEC 320-C13 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.031"~0.071" [0.80mm~1.80mm] | Single Port | Non-Fused | No | View | Shop | |
| IEC-D-1-EF-C2 | Female Outlet | IEC 320-C13 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.031"~0.071" [0.80mm~1.80mm] | Single Port | Non-Fused | No | View | Shop | ||
 |
IEC-D-2 | Female Outlet | IEC 320-C13 | Snap-In Panel Mount | Quick Connect .250" [6.35mm] | 0.031"~0.071" [0.80mm~1.80mm] | Single Port | Non-Fused | No | View | Shop | |
 |
IEC-D-3 | Female Outlet | IEC 320-C13 | Snap-In Panel Mount | Solder .157" [4.0mm] | 0.031"~0.071" [0.80mm~1.80mm] | Single Port | Non-Fused | No | View | Shop | |
| IEC-D-S4-1-150-SPTN | Female Outlet | IEC 320-C13 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.059" [1.50mm] | Multi Port | Non-Fused | No | View | Shop | ||
| IEC-D-S6-1-150-SPTN | Female Outlet | IEC 320-C13 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.059" [1.50mm] | Multi Port | Non-Fused | No | View | Shop | ||
 |
IEC-D-SX-150 | Female Outlet | IEC 320-C13 | Snap-In Panel Mount | Solder .157" [4.0mm] | 0.059" [1.50mm] | Multi Port | Non-Fused | No | View | Shop | |
 |
IEC-EW-4 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Right Angle PCB Mount | Single Port | Non-Fused | No | View | Shop | ||
| IEC-EW-4-20A-C3 | Male Inlet | IEC 320-C14 | Right Angle PCB | Right Angle PCB Mount | Single Port | Non-Fused | No | View | Shop | |||
| IEC-EW-4-GW | Male Inlet | IEC 320-C14 | Right Angle PCB | Right Angle PCB Mount | Single Port | Non-Fused | No | View | Shop | |||
| IEC-EZ-4 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Right Angle PCB Mount | Single Port | Non-Fused | No | View | Shop | |||
 |
IEC-F-1 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Quick Connect .187" [4.8mm] | Single Port | Fused | No | View | Shop | ||
 |
IEC-F-2 | Male Inlet | IEC 320-C14 | Screw-On Panel Mount | Quick Connect .250" [6.35mm] | Single Port | Fused | No | View | Shop | ||
 |
IEC-FS-1 | Fused Inlet | IEC 320-C14 | Screw-On Panel Mount | Quick Connect .187" [4.8mm] | Single Port | Fused | No | View | Shop | ||
 |
IEC-G-1 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.031"~0.126" [0.80mm~3.20mm] | Single Port | Fused | No | View | Shop | |
 |
IEC-G-2 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .250" [6.35mm] | 0.031"~0.126" [0.80mm~3.20mm] | Single Port | Fused | No | View | Shop | |
 |
IEC-G-3 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Solder .157" [4.0mm] | 0.031"~0.126" [0.80mm~3.20mm] | Single Port | Fused | No | View | Shop | |
 |
IEC-GS-1-100 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.039" [1.00mm] | Single Port | Fused | Yes | View | Shop | |
 |
IEC-GS-1-150 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.059" [1.50mm] | Single Port | Fused | Yes | View | Shop | |
| IEC-GS-1-150-RLS | Male Inlet | IEC 320-C18 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.059" [1.50mm] | Single Port | Fused | Yes | View | Shop | ||
| IEC-GS-1-150-SPR | Male Inlet | IEC 320-C18 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.059" [1.50mm] | Single Port | Fused | Yes | View | Shop | ||
 |
IEC-GS-1-200 | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.078" [2.00mm] | Single Port | Fused | Yes | View | Shop | |
 |
IEC-HS-1 | Inlet/Outlet Combination | IEC 320-C13 and IEC 320-C14 Dual Port | Snap-In Panel Mount | Quick Connect .187" [4.8mm] | 0.031"~0.098" [0.80mm~2.5mm] | Multi Port | Non-Fused | No | View | Shop | |
 |
IEC-J-4-150 | Male Inlet | IEC 320-C14 | Right Angle PCB | Right Angle PCB Mount | 0.059" [1.50mm] | Single Port | Non-Fused | No | View | Shop | |
 |
IEC-J-4-200 | Male Inlet | IEC 320-C14 | Right Angle PCB | Right Angle PCB Mount | 0.078" [2.00mm] | Single Port | Non-Fused | No | View | Shop | |
| IEC-J-4-200-8.30-NST | Male Inlet | IEC 320-C14 | Snap-In Panel Mount | Right Angle PCB Mount | 0.078" [2.00mm] | Single Port | Non-Fused | No | View | Shop |
| Part Number | B01-0102076AC03 |
|---|---|
| Type | Power Cord |
| Style | Cord: NEMA to IEC 320-C13 |
| Mounting Type | |
| Termination | |
| Panel Thickness | |
| Number of Ports | |
| Fused | Non-Fused |
| Switched | |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-A-1 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-A-2 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-A-3 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-A-4 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Right Angle PCB Mount |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-B-1 |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-B-2 |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-C-1 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.031"~0.079" [0.80mm~2.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-C-1-080 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.031" [0.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-C-1-150 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-C-1-400 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.157" [4.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-2 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | 0.031"~0.079" [0.80mm~2.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-2-080 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | 0.031" [0.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-2-150 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-2-400 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | 0.157" [4.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-3 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | 0.031"~0.079" [0.80mm~2.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-3-080 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | 0.031" [0.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-3-150 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-3-400 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | 0.157" [4.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-5 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .098" [2.49mm] |
| Panel Thickness | 0.031"~0.079" [0.80mm~2.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-5-080 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .098" [2.49mm] |
| Panel Thickness | 0.031" [0.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-5-150 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .098" [2.49mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-5-400 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .098" [2.49mm] |
| Panel Thickness | 0.157" [4.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-C-X-XXX |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Multiple Options |
| Panel Thickness | 0.031"~0.157" [0.80mm~4.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-D-1 |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.031"~0.071" [0.80mm~1.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-D-1-EF-C2 |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.031"~0.071" [0.80mm~1.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-D-2 |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | 0.031"~0.071" [0.80mm~1.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-D-3 |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | 0.031"~0.071" [0.80mm~1.80mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-D-S4-1-150-SPTN |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Multi Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-D-S6-1-150-SPTN |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Multi Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-D-SX-150 |
| Type | Female Outlet |
| Style | IEC 320-C13 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Multi Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-EW-4 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Right Angle PCB Mount |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-EW-4-20A-C3 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Right Angle PCB |
| Termination | Right Angle PCB Mount |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-EW-4-GW |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Right Angle PCB |
| Termination | Right Angle PCB Mount |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-EZ-4 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Right Angle PCB Mount |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-F-1 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-F-2 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-FS-1 |
| Type | Fused Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Screw-On Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-G-1 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.031"~0.126" [0.80mm~3.20mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-G-2 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .250" [6.35mm] |
| Panel Thickness | 0.031"~0.126" [0.80mm~3.20mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-G-3 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Solder .157" [4.0mm] |
| Panel Thickness | 0.031"~0.126" [0.80mm~3.20mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-GS-1-100 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.039" [1.00mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | Yes |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-GS-1-150 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | Yes |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-GS-1-150-RLS |
| Type | Male Inlet |
| Style | IEC 320-C18 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | Yes |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-GS-1-150-SPR |
| Type | Male Inlet |
| Style | IEC 320-C18 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | Yes |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-GS-1-200 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.078" [2.00mm] |
| Number of Ports | Single Port |
| Fused | Fused |
| Switched | Yes |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-HS-1 |
| Type | Inlet/Outlet Combination |
| Style | IEC 320-C13 and IEC 320-C14 Dual Port |
| Mounting Type | Snap-In Panel Mount |
| Termination | Quick Connect .187" [4.8mm] |
| Panel Thickness | 0.031"~0.098" [0.80mm~2.5mm] |
| Number of Ports | Multi Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-J-4-150 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Right Angle PCB |
| Termination | Right Angle PCB Mount |
| Panel Thickness | 0.059" [1.50mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | IEC-J-4-200 |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Right Angle PCB |
| Termination | Right Angle PCB Mount |
| Panel Thickness | 0.078" [2.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | IEC-J-4-200-8.30-NST |
| Type | Male Inlet |
| Style | IEC 320-C14 |
| Mounting Type | Snap-In Panel Mount |
| Termination | Right Angle PCB Mount |
| Panel Thickness | 0.078" [2.00mm] |
| Number of Ports | Single Port |
| Fused | Non-Fused |
| Switched | No |
| Datasheet / 3D Model | |
| Shop | |
Showing results 1-50 on Page 1 of 3
Disclaimer
All product specifications, statements, information and data posted on this website are subject to change. The customer is responsible for checking and verifying the extent to which the information contained in these publications is suitable for their application prior to releasing an order. It is also recommended to apply for and test samples for compatibility in each intended application. All information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
Statements of suitability for certain applications are based on Adam Tech’s knowledge of typical operating conditions for such applications but are not intended to constitute a guarantee. Adam Tech specifically disclaims any warranty concerning suitability for a specific customer’s application or use.
