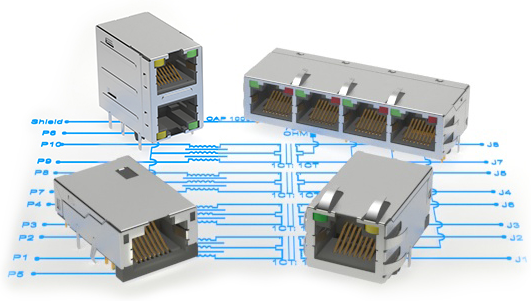

Modular Jacks with Integrated Magnetics
Adam Tech MTJ series RJ-45 connectors with integrated magnetics are designed to support Base 10, 100 and 1000-T applications such as hubs, routers, ADSL modems, and ATM transmission equipment. The integrated magnetics allows the design engineer to save PC board real-estate and lower the total part count per system. This series meets all applicable specifications for CAT 5, 5e, 6, Cat6a and IEEE 802.3. The USB model meets all applicable USB 2.0 specifications. All configurations are available with optional LED’s.
All products in this category are RoHS & REACH Compliant
| Product Photo | Part Number | Mating Parts | Number of Positions/Contacts | Mounting Orientation | Mounting | Speed | No of Ports | Shielding | Tab Direction | LED | Datasheet / 3D Model | Ordering |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTJ-108TUX1-FSD-VLH-M124 | 10P8C (RJ45) | Right Angle | Through Hole | 1000 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-86SAX1-FSP-PG-L29-M41W | 8P6C (RJ45) | Right Angle | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green/Orange - Yellow | View | Shop | ||
| MTJ-86TX1-FS-PG-M41-SMT | 8P6C (RJ45) | Right Angle | Surface Mount | 10/100 Base-T | 1 | Full Shield | Down | No LED | View | Shop | ||
| MTJ-88AX1-FS-TSMT-P-LH-M463Y-HT-WOT-KT | 8P8C (RJ45) | Vertical | Surface Mount | 1G Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88AX1-FSN-HP-LG-M197C | 8P8C (RJ45) | Vertical | Through Hole | 100 Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88AX1-FSN-HP-M197C | 8P8C (RJ45) | Vertical | Through Hole | 100 Base-T | 1 | Full Shield | Up | No LED | View | Shop | ||
| MTJ-88AX1-FSN-L29-M371Y | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T (protect component/lightning proof) | 1 | Full Shield | Up | Green/Orange - Yellow | View | Shop | ||
 |
MTJ-88AX1-FSN-LG-M21Y | View | 8P8C (RJ45) | Vertical | Through Hole | 1G Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop |
| MTJ-88AX1-FSN-LG-STP-M36 | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88AX1-FSN-LH-M4 | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88AX1-FSN-LH-M4S | View | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | |
| MTJ-88AX1-FSN-LH-M5 | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88AX1-FSN-LH1-M5C | View | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | |
| MTJ-88AX1-FSN-M4 | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | No LED | View | Shop | ||
| MTJ-88AX1-FSN-M4Y | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | No LED | View | Shop | ||
| MTJ-88AX1-FSN-STP-LG-M332C-WOT | 8P8C (RJ45) | Vertical | Through Hole | 1G Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88AX1-FSN-STP-LH-M5-WOT | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88AX1-FSN-STP-LH-M5C-WOT | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88AX1-FSN-STP-LP-M4C-WOT | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Yellow/Green - Yellow/Green | View | Shop | ||
| MTJ-88AX1-FSN-STP-M63C | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | No LED | View | Shop | ||
| MTJ-88BAX1-FS-PG-VL16-M329Y | 8P8C (RJ45) | Right Angle | Through Hole | 1G Base-T | 1 | Full Shield | Up | Green/Yellow - Green/Yellow | View | Shop | ||
| MTJ-88BX1-FS-LH-M5C-HT-TR | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88CX1-FSP-LG-M5 | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88CX1-FSP-PG-L16-M20 | 8P8C (RJ45) | Right Angle | Through Hole | 1G Base-T | 1 | Full Shield | Up | Green/Yellow - Green/Yellow | View | Shop | ||
| MTJ-88CX1-FSP-PG-L18-M20 | 8P8C (RJ45) | Right Angle | Through Hole | 1G Base-T | 1 | Full Shield | Up | Orange/Green - Yellow | View | Shop | ||
| MTJ-88CX1-FSP-PG-L18-M49 | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Orange/Green - Yellow | View | Shop | ||
| MTJ-88CX1-FSP-PG-L29-M70C1-WOT-B | 8P8C (RJ45) | Right Angle | Through Hole | 1000 Base-T (POE) | 1 | Full Shield | Up | Green/Orange - Yellow | View | Shop | ||
| MTJ-88CX1-FSP-PG-L35-M101AC-NY46 | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Green - Green/Yellow | View | Shop | ||
| MTJ-88CX1-FSP-PG-LD-M49C | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Green - Green | View | Shop | ||
| MTJ-88CX1-FSP-PG-LG-M216C-WOT-A | 8P8C (RJ45) | Right Angle | Through Hole | 10 Base-T (POE) | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88CX1-FSP-PG-LH-M216 | 8P8C (RJ45) | Right Angle | Through Hole | 10 Base-T (POE) | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88CX1-FSP-PG-LP-M70C | 8P8C (RJ45) | Right Angle | Through Hole | 1000 Base-T (POE) | 1 | Full Shield | Up | Yellow/Green - Yellow/Green | View | Shop | ||
| MTJ-88CX1-FSP-PG-LV-M16-HT-WOT | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Green - Yellow/Green | View | Shop | ||
| MTJ-88CX1-FSP-PG-VLP-M70C | 8P8C (RJ45) | Right Angle | Through Hole | 1000 Base-T (POE) | 1 | Full Shield | Up | Yellow/Green - Yellow/Green | View | Shop | ||
| MTJ-88FX1-FSN-LH-M5D1-HT | 8P8C (RJ45) | Vertical | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88KX1-FSD-LG-M269S | 8P8C (RJ45) | Vertical | Through Hole | 1000 Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88S01-FSD-PG6-LG-M26 | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88S01-FSP-PG6-LL-M41 | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Orange/Green - Yellow | View | Shop | ||
| MTJ-88S11-L35-M397Y-HT | 8P8C (RJ45) | Right Angle | Through Hole | 1G Base-T | 1 | Unshielded | Up | Green - Green/Yellow | View | Shop | ||
| MTJ-88S11-PG-FSD-L36-M236Y-HT-WOT | 8P8C (RJ45) | Right Angle | Through Hole | 1000 Base-T | 1 | Full Shield | Up | Green - Green/Orange | View | Shop | ||
| MTJ-88SDEX1-FS-PG-M389C-HT | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Down | No LED | View | Shop | ||
| MTJ-88SUX1-FS-PG-VL28-M49C | View | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Green/Orange - Yellow | View | Shop | |
| MTJ-88SUX1-FS-PG-VL28-M49C-WOT | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Green/Orange - Yellow | View | Shop | ||
| MTJ-88SUX1-FS-PG-VL29-M252Y-HT | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Green/Orange - Yellow | View | Shop | ||
 |
MTJ-88SUX1-FS-VL28-M186C-WOT | View | 8P8C (RJ45) | Right Angle | Through Hole | 1G Base-T | 1 | Full Shield | Up | Green/Orange - Yellow | View | Shop |
| MTJ-88SUX1-FS-VLG-M252C | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T (POE) | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88SX1-FS-PG-LH-M243BY-SMT-WOT-TR | 8P8C (RJ45) | Right Angle | Surface Mount | 100 Base-T | 1 | Full Shield | Up | Green - Yellow | View | Shop | ||
| MTJ-88SX1-FSD-L38-M21C | 8P8C (RJ45) | Right Angle | Through Hole | 1G Base-T | 1 | Full Shield | Up | Green/Yellow - Green | View | Shop | ||
| MTJ-88SX1-FSD-LG-M13 | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop | ||
| MTJ-88SX1-FSD-LG-M4 | 8P8C (RJ45) | Right Angle | Through Hole | 10/100 Base-T | 1 | Full Shield | Up | Yellow - Green | View | Shop |
| Part Number | MTJ-108TUX1-FSD-VLH-M124 |
|---|---|
| Number of Positions/Contacts | 10P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1000 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-86SAX1-FSP-PG-L29-M41W |
| Number of Positions/Contacts | 8P6C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Orange - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-86TX1-FS-PG-M41-SMT |
| Number of Positions/Contacts | 8P6C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Surface Mount |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Down |
| LED | No LED |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FS-TSMT-P-LH-M463Y-HT-WOT-KT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Surface Mount |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-HP-LG-M197C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-HP-M197C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | No LED |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-L29-M371Y |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (protect component/lightning proof) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Orange - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | MTJ-88AX1-FSN-LG-M21Y |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Mating Parts | |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-LG-STP-M36 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-LH-M4 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-LH-M4S |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Mating Parts | |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-LH-M5 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-LH1-M5C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Mating Parts | |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-M4 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | No LED |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-M4Y |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | No LED |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-STP-LG-M332C-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-STP-LH-M5-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-STP-LH-M5C-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-STP-LP-M4C-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow/Green - Yellow/Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88AX1-FSN-STP-M63C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | No LED |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88BAX1-FS-PG-VL16-M329Y |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Yellow - Green/Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88BX1-FS-LH-M5C-HT-TR |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-LG-M5 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-L16-M20 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Yellow - Green/Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-L18-M20 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Orange/Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-L18-M49 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Orange/Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-L29-M70C1-WOT-B |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1000 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Orange - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-L35-M101AC-NY46 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Green/Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-LD-M49C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-LG-M216C-WOT-A |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-LH-M216 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-LP-M70C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1000 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow/Green - Yellow/Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-LV-M16-HT-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow/Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88CX1-FSP-PG-VLP-M70C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1000 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow/Green - Yellow/Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88FX1-FSN-LH-M5D1-HT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88KX1-FSD-LG-M269S |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Vertical |
| Mounting | Through Hole |
| Speed | 1000 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88S01-FSD-PG6-LG-M26 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88S01-FSP-PG6-LL-M41 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Orange/Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88S11-L35-M397Y-HT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Unshielded |
| Tab Direction | Up |
| LED | Green - Green/Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88S11-PG-FSD-L36-M236Y-HT-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1000 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Green/Orange |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SDEX1-FS-PG-M389C-HT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Down |
| LED | No LED |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SUX1-FS-PG-VL28-M49C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Orange - Yellow |
| Mating Parts | |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SUX1-FS-PG-VL28-M49C-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Orange - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SUX1-FS-PG-VL29-M252Y-HT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Orange - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Product Photo |
|
| Part Number | MTJ-88SUX1-FS-VL28-M186C-WOT |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Orange - Yellow |
| Mating Parts | |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SUX1-FS-VLG-M252C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T (POE) |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SX1-FS-PG-LH-M243BY-SMT-WOT-TR |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Surface Mount |
| Speed | 100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green - Yellow |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SX1-FSD-L38-M21C |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 1G Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Green/Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SX1-FSD-LG-M13 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
| Part Number | MTJ-88SX1-FSD-LG-M4 |
| Number of Positions/Contacts | 8P8C (RJ45) |
| Mounting Orientation | Right Angle |
| Mounting | Through Hole |
| Speed | 10/100 Base-T |
| No of Ports | 1 |
| Shielding | Full Shield |
| Tab Direction | Up |
| LED | Yellow - Green |
| Datasheet / 3D Model | |
| Shop | |
Showing results 1-50 on Page 1 of 5
Disclaimer
All product specifications, statements, information and data posted on this website are subject to change. The customer is responsible for checking and verifying the extent to which the information contained in these publications is suitable for their application prior to releasing an order. It is also recommended to apply for and test samples for compatibility in each intended application. All information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
Statements of suitability for certain applications are based on Adam Tech’s knowledge of typical operating conditions for such applications but are not intended to constitute a guarantee. Adam Tech specifically disclaims any warranty concerning suitability for a specific customer’s application or use.
